Beschrijving

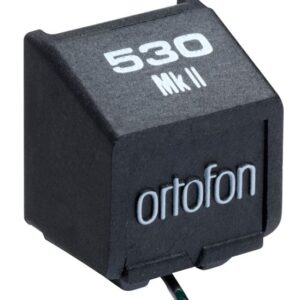

Naald voor 530 mkII, 530,530P series
Technical specifications
Frequency response – 20-25.000 Hz
Tracking ability at 315Hz at recommended tracking force *) – 80 µm
Compliance, dynamic, lateral – 30 µm/mN
Stylus type – Nude Fine Line
Stylus tip radius – r/R 8/40 µm
Equivalent stylus tip mass – 0,3 mg
Tracking force range – 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended – 1,5 g (1,5 mN)
Tracking angle – 20°
Stylus colour – Black/Grey
Recommended for Series 530 Mkll, 530, 530 P
Website: Ortofon
